CE30.M - Oil Smoke Extraction
CE30.M INSTALLATION

CE10.M - Oil Smoke Extraction
CE10.M INSTALLATION

CE20.M - Grinding Dust Extraction
CE20.M INSTALLATION
Oil Mist, Oil Smoke & Grinding Dust Combination Extraction Units
The CE.M series are designed for the extraction/filtration of polluted air streams consisting of a mixture of both dry dusts and oil mist/smoke.

The units are manufactured from heavy gauge steel, continuously rated, and arranged for floor standing, or wall mounted.

Features:
• High efficiency backward inclined centrifugal fan assembly
• Built as standard for 380/440 volts three phase 50 cycles. Other electrical voltages available
• There is a choice in position and size of the foul air inlet
• Hinged access doors provide easy withdrawal of the internal filters
• Built-in silencer as standard
• Overall Efficiency - 99.99%

There are four standard sizes as detailed below. Larger units are available built to order

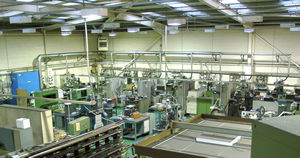

CE30.M - Oil Mist Extraction
CE30.M INSTALLATION
COSHH ASSESSMENTS
MAINTENANCE CONTRACTS
EQUIPMENT HIRE
SITE SURVEYS
COMPANY PROFILE
SITE MAP
rule
SEND ENQUIRY
DISTRIBUTOR APPLICATION
CONTACT DETAILS
DOWNLOAD BROCHURE
  CE.10.M CE.20.M CE.30.M CE.40.M
Air Volume 1700m3/hr 3400m3/hr 5100m3/hr 6800m3/hr
Filter Graded mechanical filters - specification can vary to suit application
Dimensions 600 x 700mm 1200 x 700mm 1800 x 700mm 2400 x 700mm
Height Dimensions 2400mm 2400mm 2400mm 2400mm
Motor 2.2kw 3.0kw 4.0kw 5.5kw
Main Cabinet Zintec, finish painted
